Vernon Basin Shipwreck

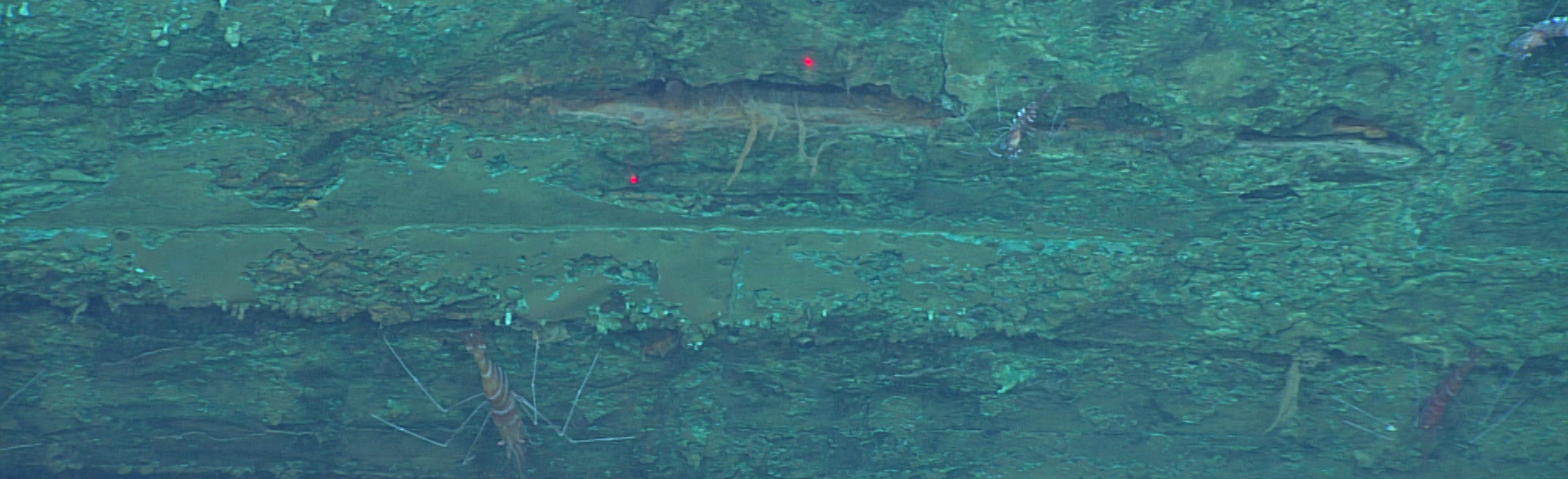

Unidentified wooden shipwreck in the Gulf of Mexico. Image courtesy of NOAA Ocean Exploration, Shakedown and Sea Trials 2019.
Download largest version (jpg, 1.3 MB).
Background
The shipwreck at Vernon Basin was possibly a sailing vessel, such as a coastal schooner, brig, or small fully-rigged vessel and may have been built between 1840 and 1860. It is wooden with copper sheathing covering the bottom of its hull. The interior of the hull is filled with gravel and lacks any remains of cultural material. The gravel may be indicative of ballast, or the vessel may have been a gravel ship. Burn marks on parts of the wood possibly due to fire suggest the vessel may have been purposely sunk.

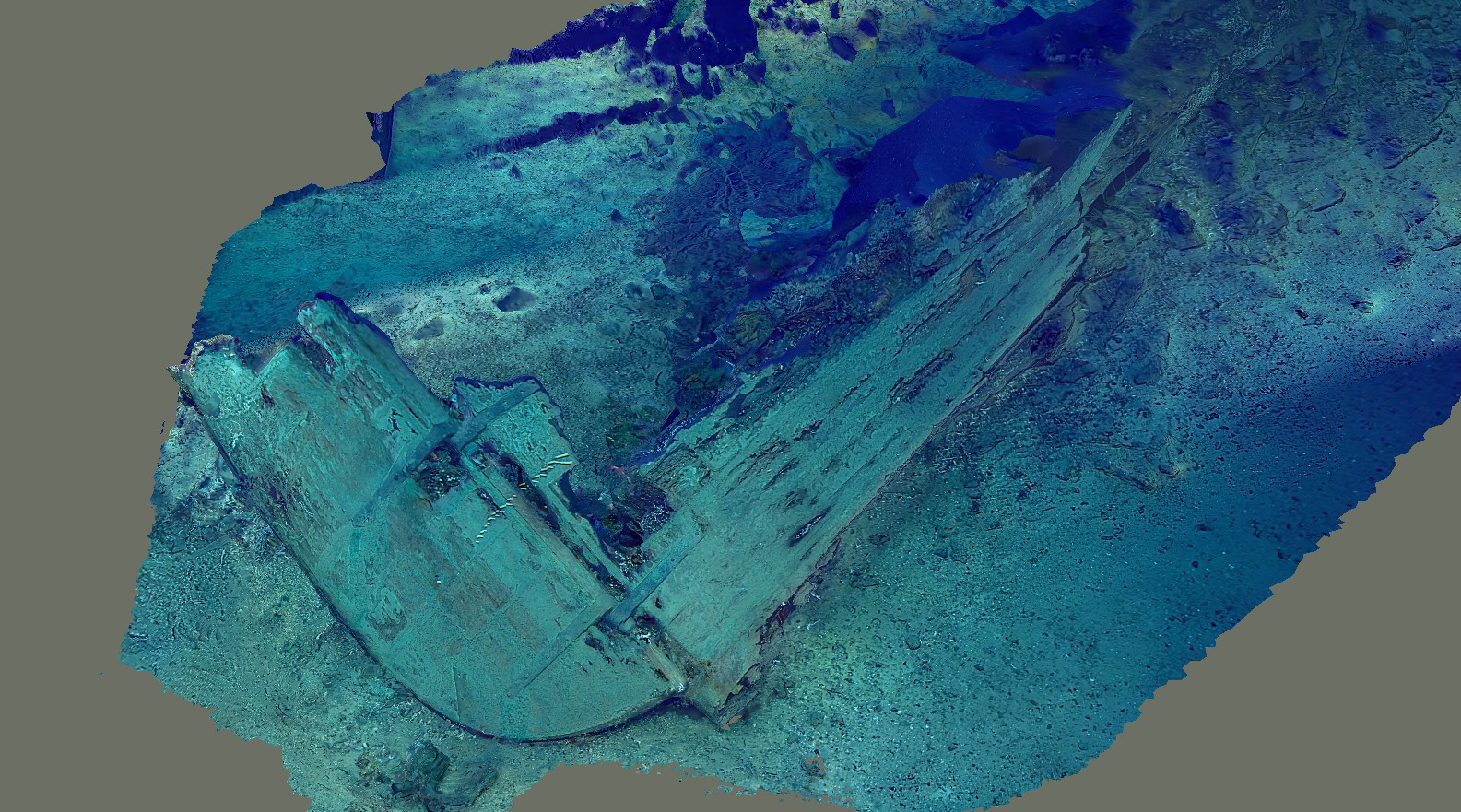

The rudder of the Vernon Basin shipwreck. Image courtesy of NOAA Ocean Exploration, Shakedown and Sea Trials 2019.
Download largest version (jpg, 1.6 MB)
Exploration
NOAA Ocean Exploration discovered and explored this shipwreck site in the Vernon Basin on May 16, 2019, at the southern section of the Florida escarpment in the Gulf of Mexico during a shakedown expedition aboard NOAA Ship Okeanos Explorer. Remotely operated vehicle (ROV) Deep Discoverer — equipped with an Insite Pacific Zeus Plus camera capable of collecting high-definition footage — was used to document the site, which is at a depth of approximately 560 meters and is approximately 37.8 meters long.
Modeling

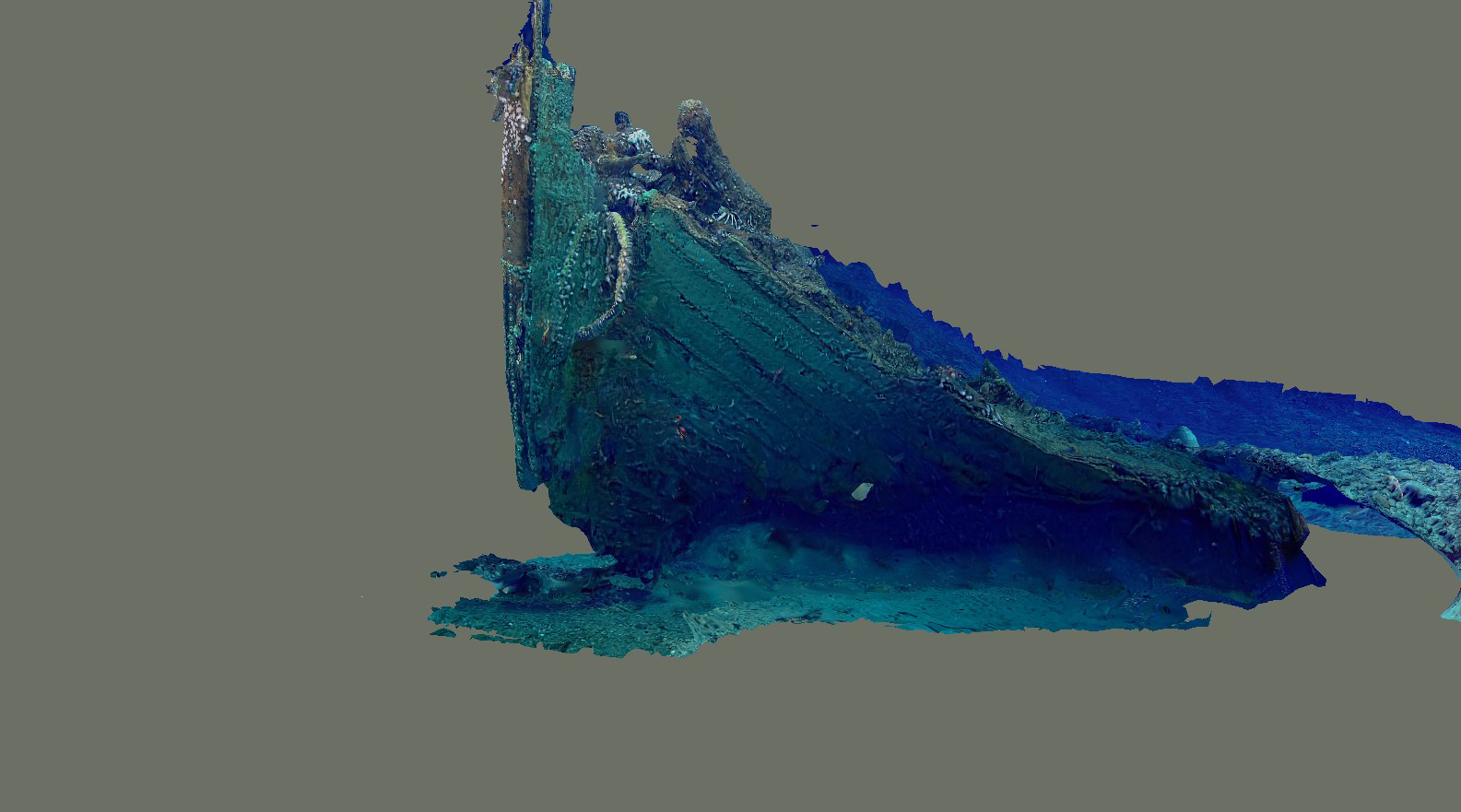

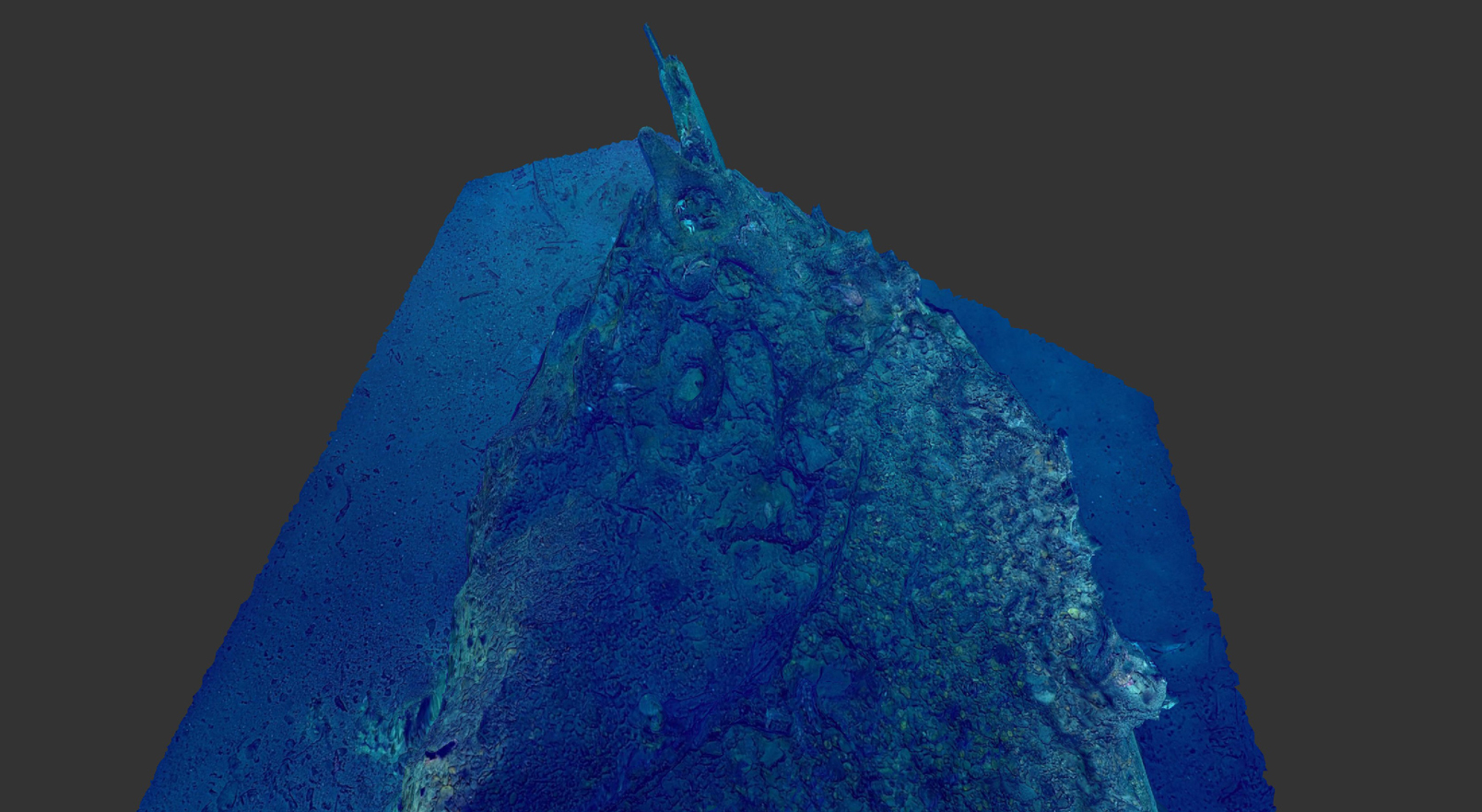

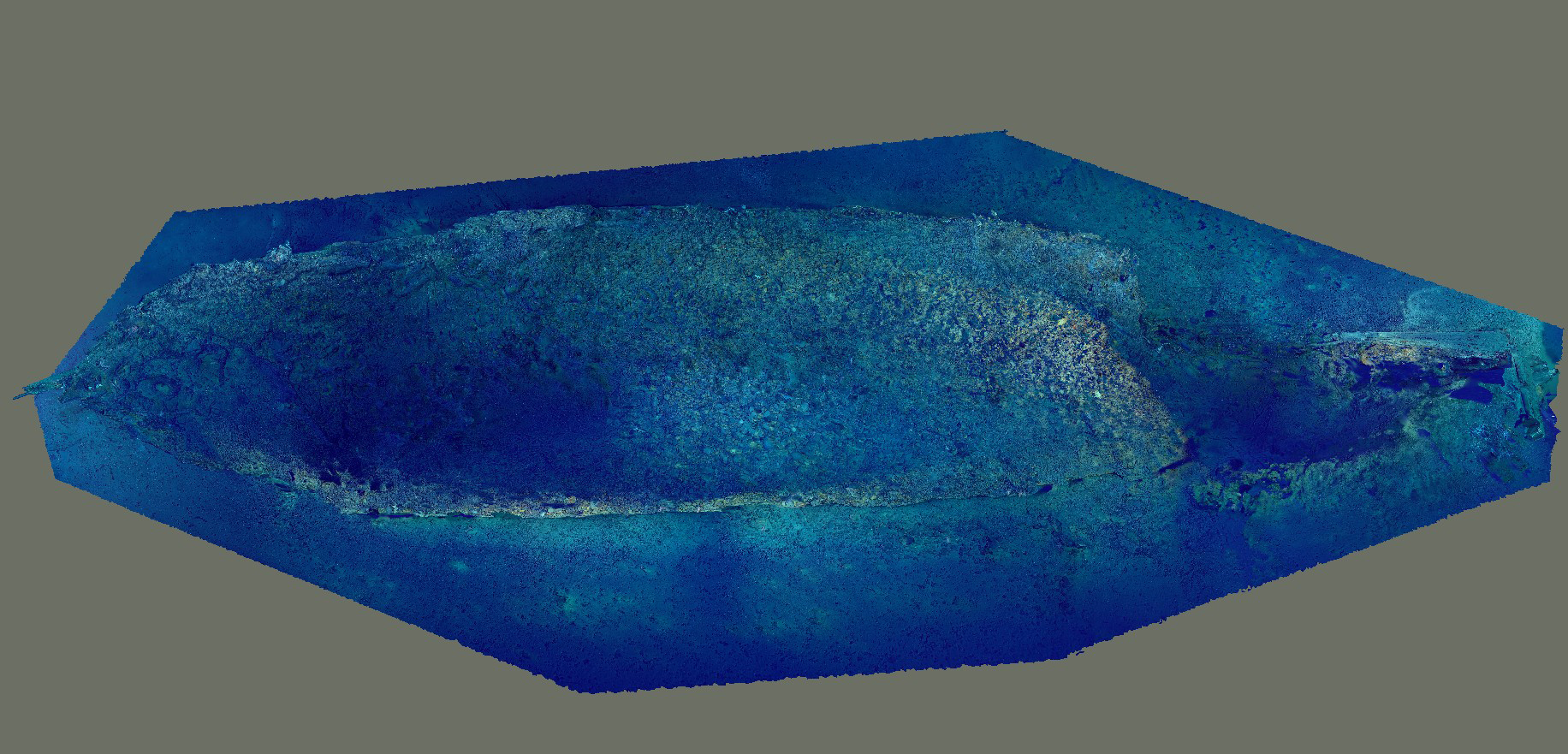

This model of the Vernon Basin shipwreck from NOAA Ocean Exploration is based on the ROV dive footage from timestamps 20:35 to 23:00. The footage was exported into 4,011 still images in VLC Player and color corrected in Photoshop. Two individual models were made and then stitched together in Rhinoceros 8 and uploaded to Construkted Reality. An additional photogrammetric model of this site is available on the Bureau of Ocean Energy Management’s Sketchfab.
Model Navigation Basics
Desktop:
- To zoom in and out: Use the scroll wheel on the mouse.
- To move around: Left click on the model with the mouse and drag.
- To rotate: Right click on the model with the mouse and drag.
Mobile Devices:
- To zoom in and out and rotate: Pinch
- To move around: Tap and drag any direction.
Related Links
Site Metadata
| Site | Data |
|---|---|
| Site Name | Vernon Basin |
| Type | UCH |
| UCH Vessel Date Built | 1840-1860 |
| UCH Vessel Date Sank | Unknown |
| Hull Material | Wood |
| Official Number | N/A |
| Location | Gulf of Mexico, Florida escarpment |
| Depth | 560 meters |
| Length | Approximately 37.8 meters |
| Width | Unknown |
Dive Metadata
| Dive | Data |
|---|---|
| Expedition Number | EX1902 |
| Expedition Name | Shakedown and Sea Trials 2019 |
| ROV Dive Number | 03 |
| ROV Dive Date | May 16, 2019 |
| ROV Used | Deep Discoverer |
| Camera Information | Insite Pacific Zeus Plus HD, 3-CCD color camera with 2/3-inch 2,200,000 pixel 1080i IT CCDs |
| Video or Stills | Video |
Model Metadata
| Model | Data |
|---|---|
| Software | Agisoft Metashape Standard Version 2.0.1, Rhinoceros 8 |
| Number of Images Used/Format | 4,011/JPG |
| Image Alignment Percentage | 80% |
| Number of Tie Points | 725,552 |
| Time to Complete | 7 hours |
| Orthomosaic Views Available | No |
| Images Available | Yes |
| Animations Available | Yes |
| Available File Exports/Location/POC | archaeology.oceanexploration@noaa.gov |
